Basic Introduction

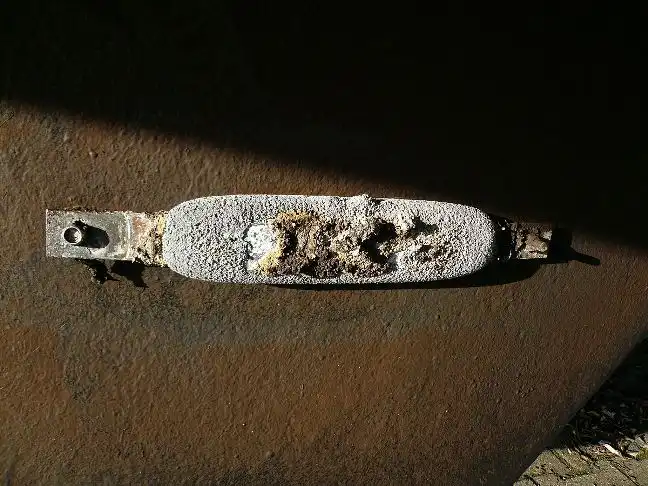

Zinc Anode are generally used in salt water, where the resistivity is generally lower. Typical uses are for the hulls of ships and boats, offshore pipelines and production platforms, in salt-water-cooled marine engines, on small boat propellers and rudders, and for the internal surface of storage tanks.
Features:
- Customized design
- Easy installation and replacement
Specification
Chemical Composition And Electrochemical Properties
| Element | ||
|---|---|---|
| Lead | 0.0006 Max | % |
| Cadmium | 0.025 – 0.15 | % |
| Iron | 0.005 Max | % |
| Copper | 0.005 Max | % |
| Aluminium | 0.10 – 0.50 | % |
| Silicon | 0.125 Max | % |
| Zinc | Remainder | Remainder |
| Capacity | 780 | Amp – Hr/Kg |
| Consumption Rate | 11.25 | Kg – Amp/Years |
| Potentials | -1050 | Mv Vs Cu/CuSo4
Ref.Cell |
| Efficiency | 96.34 | % |
