Basic Introduction

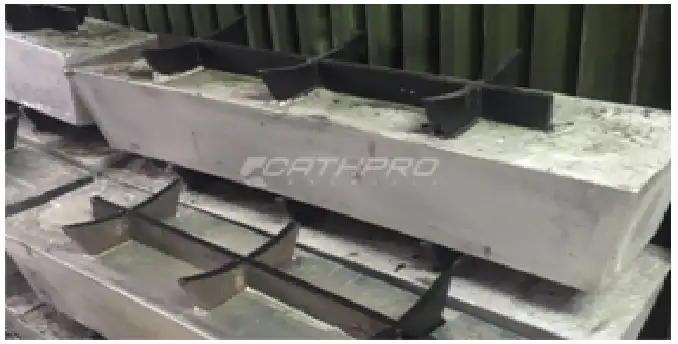

Aluminum anode is a type of anode that can be used safely in all types of water. It has very high current capacity which makes it very attractive in terms of cost and weight saving. It is highly recommended for use in low-resistivity applications. However, they can also be used for effective corrosion protection to the structures in fresh and brackish water.
Features :
- Highly cost-effective
- Easy installation and replacement
- Customized design
Specification
Chemical Composition And Electrochemical Properties
Element | ||
---|---|---|
Zinc | 2.1 – 5.0 Max | % |
Indium | 0.02 – 0.05 | % |
Iron | 0.13 Max | % |
Copper | 0.005 Max | % |
Bismuth | 0.01 Max | % |
Silicon | 0.15 | % |
Aluminium | Remainder | Remainder |
Capacity | 2700 | Amp – Hr/Kg |
Consumption Rate | 3.24 | Kg – Amp/Years |
Potentials | -1100 | Mv Vs Cu/CuSo4
Ref.Cell |
Efficiency | 90.56 | % |
